What Are the Common Capacitor Types? A Complete Selection Guide

FilmCapacitor — Fri, 05 Jun 2026 01:17:42 +0000

What Are the Common Capacitor Types? A Complete Selection Guide

Capacitors may look similar from the outside, but in practical electronic design, different capacitor types serve very different purposes. Some capacitors are designed to store large amounts of energy, while others are optimized for high-frequency filtering, signal stability, or electromagnetic interference (EMI) suppression.

In simple terms, common capacitor types are classifications based on dielectric material, electrical behavior, and application requirements. Because modern circuits operate under different voltages, frequencies, temperatures, and reliability demands, engineers cannot rely on a single capacitor type for every application.

For example, an LED power supply usually requires electrolytic capacitors to smooth voltage ripple, while ceramic capacitors are preferred for suppressing high-frequency noise on PCB boards.

Rather than asking which capacitor is “better,” the more important question is: which capacitor type best fits the electrical environment and circuit objective? Understanding the strengths and limitations of each type helps engineers and buyers make more reliable component selections.

1. Electrolytic Capacitors: Best for Bulk Energy Storage and Power Filtering

Electrolytic capacitors are among the most widely used capacitor types in power electronic circuits. They are mainly designed for energy storage, voltage smoothing, and ripple current filtering, making them essential in applications that require stable power delivery.

What Is an Electrolytic Capacitor?

An electrolytic capacitor is a polarized capacitor that provides high capacitance in a relatively compact size. Compared with ceramic capacitors, it is better suited for handling large voltage fluctuations and temporary energy storage. Because of their high capacitance capability, they are commonly installed in power conversion systems where voltage stability is critical.

Key Advantages & Limitations

High capacitance value relative to physical size (typically 1uF-1F)
Cost-effective choice for power and smoothing circuits
Excellent voltage smoothing capability
Main Limitation: Polarized structure (will fail catastrophically if reversed) and a shorter operational lifespan due to liquid electrolyte evaporation over time.

Typical Applications

Switching power supplies (SMPS) and capacitors for servers
LED drivers and solar inverters
Industrial motor drives
Automotive electronics and home appliances

Note: Depending on the mounting requirements, these are available as SMD electrolytic capacitors for compact PCBs, radial types for general circuits, or snap-in/screw terminals for high-power equipment.

2. Ceramic Capacitors: Ideal for High-Frequency Decoupling and Noise Suppression

Ceramic capacitors are one of the most commonly used capacitor types in modern electronic circuits. Unlike electrolytic capacitors, which mainly focus on energy storage, ceramic capacitors are designed for high-frequency filtering, signal stability, and electrical noise suppression.

What Is a Ceramic Capacitor?

A ceramic capacitor is a non-polarized capacitor that uses ceramic material as the dielectric. It is most commonly found in the form of MLCCs (Multi-Layer Ceramic Capacitors). Because of its fast electrical response and low parasitic parameters (ESR and ESL), it is widely used in high-speed digital electronics.

Understanding Class 1 vs. Class 2 Ceramic Dielectrics

To make an accurate selection, engineers must distinguish between the two main classes of ceramic dielectrics:

Class 1 (e.g., C0G / NP0): Offers ultra-high temperature stability and zero capacitance drift. Ideal for resonant circuits, RF filtering, and precision timing. However, capacitance values are highly limited.
Class 2 (e.g., X7R / X5R / Y5V): Offers much higher volumetric efficiency (higher capacitance in smaller packages), but is highly sensitive to temperature changes and suffers from capacitance degradation under DC voltage.

Common Uses in Electronic Circuits

Ceramic capacitor applications are found in nearly every electronic device, especially in circuits that require fast switching or stable signal transmission.

Typical applications include:

PCB decoupling and bypass circuits
High-frequency filtering
Smartphones and consumer electronics
Computer motherboards and processors
Automotive electronics
Communication and RF circuits

In many designs, ceramic capacitors work together with electrolytic capacitors—electrolytic capacitors stabilize bulk power, while ceramic capacitors suppress high-frequency noise.

3. Film Capacitors: Preferred for Long-Term Stability and High-Voltage AC Circuits

Film capacitors are widely used in electronic and industrial systems where long-term stability, reliability, and consistent electrical performance are required. Among different capacitor types, film capacitors are known for their excellent electrical characteristics and long service life.

Unlike electrolytic capacitors, which are mainly used for energy storage, and ceramic capacitors, which are optimized for high-frequency performance, film capacitors are designed to deliver stable operation under high voltage and long working conditions.

What Is a Film Capacitor?

A film capacitor uses a thin plastic film (such as polypropylene or polyester) as the dielectric material. This unique structure provides high insulation resistance, ultra-low dielectric loss, and remarkably stable capacitance over a long operating life.

The Power of “Self-Healing” Properties

The most critical advantage of metallized film capacitors in industrial setups is their self-healing capability. If an overvoltage spike causes a localized dielectric breakdown, the thin metallic layer around the fault point instantly vaporizes due to the arc heat. This isolates the shorted area and restores the capacitor to normal operation, preventing catastrophic circuit fires.

Typical Applications of Film Capacitors

Film capacitor uses are mainly found in medium to high-power and high-reliability applications, especially where electrical stress is significant.

Common film capacitor uses include:

Motor drive and inverter systems
Industrial power supplies
Renewable energy systems (solar and wind)
AC filtering and power conditioning
Automotive electronics
Audio and precision circuits

In many industrial designs, film capacitors are used to improve system stability and reduce long-term failure risk, especially in high-voltage environments.

Compared with other capacitor types, film capacitors are often selected when reliability and lifespan are more important than component size.

4. Tantalum Capacitors

Tantalum capacitors are widely used in compact electronic devices where stable capacitance and small component size are required. Among different capacitor types, they are valued for their high capacitance density and reliable electrical performance in space-limited circuit designs.

Compared with electrolytic and ceramic capacitors, tantalum capacitors offer more stable capacitance characteristics, making them suitable for applications that require consistent performance over time.

Advantages of Tantalum Capacitors

High capacitance in a very small package
Stable electrical performance
Good reliability in low-voltage DC circuits
Suitable for compact PCB designs

However, tantalum capacitors are also more sensitive to voltage and surge current, which means proper circuit design and protection are required to ensure safe operation.

Typical Applications

Tantalum capacitor applications are mainly found in:

Smartphones and portable electronics
Medical electronic devices
Compact control modules
Power management circuits
Low-voltage DC filtering systems

Due to their size advantage, tantalum capacitors are often selected when PCB space is limited and stable capacitance is required.

5.Supercapacitors

Supercapacitors, also known as ultracapacitors, are energy storage devices that bridge the gap between traditional capacitors and batteries. Among different capacitor types, they are known for their extremely high capacitance and ability to deliver fast energy bursts.

Unlike other capacitor types used for filtering or signal stability, supercapacitors are mainly designed for energy storage applications that require rapid charge and discharge cycles.

What Is a Supercapacitor?

Unlike other capacitor types used for high-frequency filtering, supercapacitors utilize electrochemical double-layer capacitance to achieve immense capacitance values (measured in Farads, 1F-3000F). They are designed for rapid charge and discharge cycles rather than steady-state power conditioning.

Key Advantages & Limitations

Virtually unlimited cycle life (100,000+cycles) with minimal degradation compared to chemical batteries.
Main Limitation: Very low voltage rating per single cell (typically 2.5V- 3.0V), requiring series connections and cell-balancing circuits for higher voltage systems.

Typical Applications

Supercapacitor applications are mainly found in systems that require short-term energy backup or rapid power delivery, such as:

Backup power systems
Smart meters and industrial memory backup
Renewable energy storage support
Automotive start-stop systems
Power stabilization modules

Because of their unique energy behavior, supercapacitors are often used alongside batteries rather than replacing them completely.

6.Feedthrough Capacitors: Optimized for EMI Suppression and Signal Integrity

Feedthrough capacitors are specialized components designed for electromagnetic interference (EMI) suppression in high-frequency and high-reliability electronic systems. Among different capacitor types, they are specifically engineered to filter unwanted noise while allowing DC or low-frequency signals to pass through.

Unlike general-purpose capacitors used for energy storage or signal decoupling, feedthrough capacitors are typically integrated into metal housings or feedthrough structures to achieve superior high-frequency noise suppression performance.

What Makes Feedthrough Capacitors Different?

Feedthrough capacitors are designed with a unique structure that minimizes parasitic inductance, allowing them to perform effectively at very high frequencies. This makes them more efficient than standard capacitors when dealing with EMI in sensitive electronic environments.

They are often used in systems where signal integrity and electromagnetic compatibility (EMC) are critical.

Advantages of Feedthrough Capacitors

Excellent high-frequency EMI suppression
Low parasitic inductance design
High reliability in harsh environments
Effective noise filtering in compact structures

Because of these characteristics, feedthrough capacitors are widely used in demanding industrial and electronic systems where standard capacitors cannot provide sufficient noise control.

Typical Applications

Feedthrough capacitor applications are mainly found in systems requiring strong EMI protection, including:

Industrial power supplies
EMI/EMC filter modules
Medical electronic equipment
Automotive electronic control systems
Communication and signal processing systems
High-reliability military and aerospace electronics

In many EMI filter designs, feedthrough capacitors are used together with inductors and other filtering components to form complete noise suppression solutions.

7. Safety Capacitors

Safety capacitors are specially designed components used in AC power systems where electrical safety and reliability are critical. Among different capacitor types, they are built to meet strict international safety standards for operation directly connected to the mains power supply.

Unlike standard capacitors used for signal processing or energy storage, safety capacitors are designed to fail in a controlled and safe manner, helping prevent electrical hazards in AC circuits.

Types of Safety Capacitors

Safety capacitors are placed directly across AC mains power lines and are divided into two categories:

X Capacitors (Line-to-Neutral): Used to suppress differential-mode noise. If they fail, they safely short-circuit, blowing the circuit fuse.
Y Capacitors (Line-to-Ground): Used to reduce common-mode noise. They are engineered to fail open-circuit to prevent dangerous electrical shocks from passing to the metallic chassis touched by humans.

Both types are essential for improving electromagnetic compatibility (EMC) in AC power systems.

Advantages of Safety Capacitors

Designed for high safety and reliability standards
Certified for direct AC line applications
Effective EMI and noise suppression
Stable performance under high voltage conditions

Because of these characteristics, safety capacitors are mandatory in many power electronics products that connect directly to AC mains.

Typical Applications

Safety capacitor applications are widely found in:

AC power supplies
Home appliances
Industrial power equipment
Charging devices
LED lighting drivers
Consumer electronics

They are an essential part of EMI filter circuits, ensuring both device performance and user safety in AC-powered systems.

Quick Comparison of Common Capacitor Types

The table below provides a quick comparison of the most common capacitor types used in modern electronics.

Capacitor Types	Primary Function	Key Advantage	Main Limitation	Typical Applications
Electrolytic Capacitor	Energy storage & voltage smoothing	High capacitance	Polarized, shorter lifespan	Power supplies, inverters, LED drivers
Ceramic Capacitor	High-frequency filtering	Small size & fast response	Limited capacitance	PCB circuits, decoupling, RF circuits
Film Capacitor	Stable voltage control	Long lifespan & reliability	Larger physical size	Motor drives, industrial electronics
Tantalum Capacitor	Compact energy buffering	Stable capacitance	Sensitive to overvoltage	Consumer electronics, compact PCBs
Supercapacitor	Short-term energy storage	Fast charge/discharge	Low voltage rating	Backup power, energy storage
Feedthrough Capacitor	EMI noise suppression	Excellent high-frequency filtering	Specialized application	EMI filters, industrial equipment
Safety Capacitor	Electrical protection in AC circuits	High safety compliance	Limited usage scenarios	Home appliances, AC filtering

From this comparison, it becomes clear that there is no universal capacitor suitable for every circuit. For example, if a design requires high capacitance and ripple current handling, electrolytic capacitors are usually preferred. When high-frequency noise suppression is critical, ceramic or feedthrough capacitors often provide better performance. For applications demanding long-term stability, film capacitors are generally a more reliable option.

In practice, engineers frequently combine multiple capacitor types in one circuit to balance energy storage, filtering efficiency, reliability, and EMI control.

Frequently Asked Questions (FAQ) about Capacitor Types

What are the 7 main types of capacitors used in electronics?

The 7 most common capacitor types are electrolytic, ceramic, film, tantalum, supercapacitor, feedthrough, and safety capacitors. Each serves a dedicated role in circuits, ranging from bulk energy storage to high-frequency electromagnetic noise filtering.

Electrolytic vs. Ceramic Capacitor: What is the difference?

The key difference lies in their application focus. Electrolytic capacitors are polarized and deliver high capacitance, making them perfect for low-frequency power smoothing. Ceramic capacitors are non-polarized, smaller, and have much lower parasitic values, making them ideal for high-frequency decoupling and noise suppression.

Which capacitor type is best for power supply applications?

For power supplies, engineers typically use a combination of electrolytic and ceramic capacitors. Electrolytic capacitors act as bulk reservoirs to absorb low-frequency voltage ripples, while ceramic capacitors sit close to integrated circuits to filter out high-frequency switching noise.

Why use a feedthrough capacitor instead of a standard ceramic capacitor?

Standard capacitors have lead wires or SMD terminations that introduce parasitic inductance, which reduces their filtering capability at high frequencies. Feedthrough capacitors feature a coaxial design that eliminates this inductance, allowing superior EMI filtering up into the gigahertz ( $\text{GHz}$ ) range.

Electrolytic vs. Ceramic Capacitor: What is the difference?

Which capacitor type is best for power supply applications?

Why use a feedthrough capacitor instead of a standard ceramic capacitor?

Conclusion

Understanding the different capacitor types is essential for designing reliable and efficient electronic circuits. Each type of capacitor serves a specific role: electrolytic capacitors are commonly used for energy storage and voltage smoothing, ceramic capacitors are ideal for high-frequency filtering and signal decoupling, while film capacitors provide long-term stability and performance in high-voltage applications.

Other capacitor types, such as tantalum capacitors, supercapacitors, feedthrough capacitors, and safety capacitors, further extend the range of design possibilities for compact electronics, energy storage systems, EMI suppression, and AC power protection.

In real-world applications, there is no single best capacitor type. The selection depends on circuit requirements, operating conditions, cost considerations, and reliability targets. Most electronic systems use a combination of different capacitor types to achieve optimal performance in power stability, noise reduction, and electromagnetic compatibility.

By understanding the characteristics and applications of common capacitor types, engineers and buyers can make more informed decisions and choose the most suitable components for their specific designs.

The post What Are the Common Capacitor Types? A Complete Selection Guide appeared first on Xuansn Capacitor.

Robot Vacuum Capacitor for High-Speed BLDC Motor Drives: Complete Engineering Guide

FilmCapacitor — Tue, 26 May 2026 07:45:15 +0000

What is a Robot Vacuum Capacitor?

A Robot Vacuum Capacitor is a DC-Link aluminum electrolytic capacitor used in robot vacuum cleaner motor driver systems to stabilize DC bus voltage, absorb high-frequency ripple current, and provide transient energy support for BLDC motors.

It is typically placed between the rectifier and inverter stage in high-speed motor control systems.

This component directly affects motor stability, suction consistency, and overall system reliability.

1. Role of Robot Vacuum Capacitor in BLDC Motor Drivers

In a typical robot vacuum motor drive system, the Robot Vacuum Capacitor is located at the DC-Link stage:

AC → Rectifier → Robot Vacuum Capacitors (DC-Link) → Inverter → BLDC Motor

Its main functions include:

1. DC-Link Voltage Stabilization

The Robot Vacuum Capacitor smooths DC bus fluctuations caused by high-frequency PWM switching.

2. Ripple Current Absorption

The Robot Vacuum Capacitor absorbs high-frequency ripple current generated by inverter switching circuits.

3. Transient Energy Support

During motor startup, blockage, or load change, the Robot Vacuum Capacitors provides instantaneous energy support.

Why Robot Vacuum Capacitor Is Critical in High-Speed Systems

In high-speed robot vacuum cleaner motor drive systems, the Robot Vacuum Capacitor plays a critical role in stabilizing the DC-Link voltage of BLDC motor drivers.

Modern robot vacuums typically operate under extremely demanding electrical conditions, including:

BLDC motor speeds up to 200,000 RPM
PWM switching frequencies in the range of 100 kHz to 300 kHz

At these operating conditions, the Robot Vacuum Capacitor is continuously subjected to:

High-frequency ripple current generated by inverter switching
Fast di/dt switching stress in the DC-Link circuit
Continuous mechanical vibration from high-speed motor operation

As a result, the capacitor is no longer a passive filtering component but a key power stability element in the motor drive system.

Therefore, standard aluminum electrolytic capacitors cannot maintain stable performance under these combined electrical, thermal, and mechanical stresses.

Electrical Characteristics of Robot Vacuum Capacitor

In high-frequency BLDC motor drive systems, a Robot Vacuum Capacitor does not behave like an ideal capacitor.

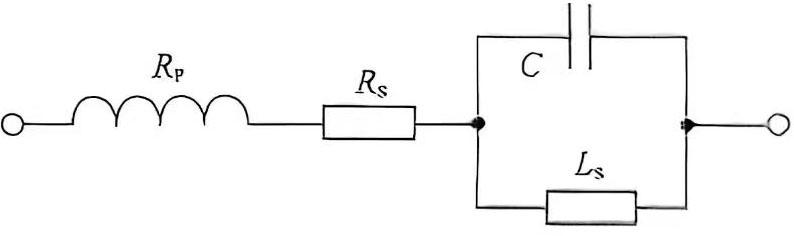

Instead, its electrical performance is determined by three internal physical effects:

internal resistance (ESR)
parasitic inductance (ESL)
ideal capacitance behavior

Key insight: frequency-dependent behavior

The electrical behavior of a Robot Vacuum Capacitor changes depending on operating frequency:

At low frequency:

The capacitor mainly acts as an energy storage component, providing stable DC-Link voltage support.

At medium frequency:

Internal resistance (ESR) becomes dominant, causing noticeable power loss and heat generation.

At very high frequency (PWM switching range):

Parasitic inductance (ESL) becomes the key factor, leading to voltage spikes and reduced filtering performance.

In modern robot vacuum cleaner motor drivers, where switching frequencies can reach 100 kHz to 300 kHz, the Robot Vacuum Capacitor operates far from ideal conditions.

As a result, its performance is mainly limited by internal resistance and inductance rather than its nominal capacitance value.

This is why standard capacitors often fail in high-speed BLDC motor applications due to excessive heating, voltage instability, and reduced filtering capability.

Why Robot Vacuum Capacitors Fail？

Robot vacuum capacitors fail because they operate under a combination of extreme electrical, thermal, and mechanical stress conditions that exceed the design limits of standard aluminum electrolytic capacitors.

In modern robot vacuum cleaner systems using high-speed BLDC motors, the capacitor is exposed to high-frequency PWM switching, large ripple currents, and continuous vibration, which together accelerate degradation.

1. Electrical stress from high ripple current

In BLDC motor driver circuits, the Robot Vacuum Capacitor must continuously absorb high-frequency ripple current generated by inverter switching.

This causes internal power loss and heat accumulation, which gradually leads to:

electrolyte evaporation
capacitance reduction
increased internal resistance
thermal runaway in severe cases

The higher the ripple current, the faster the capacitor ages.

2. High-frequency switching stress

Modern robot vacuums operate at PWM switching frequencies up to 100 kHz–300 kHz.

At these frequencies, the capacitor no longer behaves as an ideal energy storage device. Instead, parasitic effects inside the capacitor become dominant, leading to:

voltage spikes across terminals
reduced filtering efficiency
increased electrical stress on internal components

This makes the capacitor unstable under high-speed motor control conditions.

3. Mechanical vibration and shock

Robot vacuum cleaners operate in constantly moving environments with:

high-speed motor vibration
repeated start-stop cycles
floor impact and structural resonance

These mechanical stresses cause:

lead wire fatigue
solder joint cracking
internal winding displacement

Mechanical failure is one of the most common long-term failure modes.

4. Inrush current and load shock

During motor startup, direction change, or blockage conditions, the capacitor experiences sudden high inrush current spikes (often exceeding 10A).

These repeated electrical shocks lead to:

internal foil stress
welding point degradation
ESR drift over time

5. Design mismatch with compact systems

Robot vacuum cleaners require compact and lightweight PCB designs. However, standard capacitors often cannot simultaneously provide:

high ripple current capability
low ESR performance
small physical size
strong vibration resistance

This mismatch leads to premature failure in real-world applications.

Conclusion

Robot vacuum capacitors fail primarily due to the combined effects of:

high-frequency electrical stress
excessive ripple current heating
mechanical vibration fatigue
transient surge currents
and compact design limitations

In high-speed BLDC motor systems, a capacitor is no longer a simple passive component but a critical power stability element. If its ESR, ripple current rating, and mechanical structure are not properly designed, failure becomes inevitable.

Robot Vacuum Capacitor Solutions (LMM / LK / NPX Series)

To address the electrical and mechanical challenges in high-speed BLDC motor systems, Xuansn provides optimized Robot Vacuum Capacitor series specifically designed for robot vacuum cleaner motor driver applications.

Unlike standard capacitors, these series are engineered to operate under high-frequency switching, high ripple current stress, and continuous vibration conditions commonly found in modern robot vacuum systems.

Low ESR design for thermal stability

In Robot Vacuum Capacitor applications, excessive heat is mainly caused by power loss generated from high ripple current flowing through ESR.

By reducing ESR, the capacitor significantly lowers internal power dissipation, which helps:

reduce temperature rise
improve energy efficiency
enhance long-term reliability

High ripple current capability for BLDC motor drive

Robot vacuum BLDC motor drivers operate under high-frequency PWM switching conditions, typically in the 100 kHz–300 kHz range.

The Robot Vacuum Capacitor must continuously absorb ripple current generated by the inverter stage.

Enhanced ripple current capability allows:

stable DC-Link voltage support
reduced voltage fluctuation
improved motor control stability

Anti-vibration mechanical structure

Robot vacuum cleaners operate in continuously moving environments with high-speed motor vibration.

Mechanical reinforcement improves the reliability of the Robot Vacuum Capacitors by reducing:

lead wire fatigue
solder joint stress
internal structural movement

This ensures stable electrical performance under long-term vibration conditions.

Compact design for high-density PCB layouts

Modern robot vacuum systems require compact motor driver boards with high power density.

A compact Robot Vacuum Capacitor design enables:

better PCB space utilization
improved thermal layout flexibility
easier integration into slim device architectures

Engineering summary

The LMM, LK, and NPX series Robot Vacuum Capacitors are designed to solve three core challenges in BLDC motor driver systems:

thermal stress from high ripple current
electrical instability under high-frequency switching
mechanical fatigue caused by vibration

This makes them suitable for next-generation robot vacuum cleaner applications requiring high efficiency and high reliability.

Real Application Result in Robot Vacuum Motor Driver Systems

In a high-speed Robot Vacuum Capacitor application, standard aluminum electrolytic capacitors were replaced with optimized LMM/LK series capacitors in the DC-Link stage of a BLDC motor driver system.

The system operates under high-frequency PWM switching conditions and continuous vibration typical of robot vacuum cleaner environments.

Improved thermal performance (15–20°C temperature reduction)

After replacing the original capacitors, the Robot Vacuum Capacitor solution significantly reduced internal power loss caused by high ripple current.

This is primarily due to lower ESR, which reduces heat generation inside the DC-Link capacitor under high-frequency motor operation.

As a result, the measured case temperature dropped by approximately 15–20°C under full load conditions.

Elimination of vibration-related failures

In the original design, mechanical vibration from the high-speed BLDC motor caused lead fatigue and intermittent electrical contact issues.

After adopting a reinforced Robot Vacuum Capacitor structure, mechanical stability was significantly improved, eliminating vibration-induced failures during long-term operation.

Improved motor drive stability

With optimized ripple current handling capability, the DC-Link voltage became more stable during rapid PWM switching.

This resulted in:

reduced voltage fluctuation
improved inverter control accuracy
smoother motor operation

The Robot Vacuum Capacitor directly contributed to more stable BLDC motor performance.

Stabilized suction performance

Because the motor driver system operates more consistently under load, the suction performance of the robot vacuum cleaner became more stable during real-world operation, especially under:

filter blockage conditions
rapid speed changes
high-load cleaning scenarios

Conclusion

The Robot Vacuum Capacitor is a critical component in modern high-speed BLDC motor drive systems. Its performance directly affects DC-Link voltage stability, ripple current handling, and overall motor reliability in robot vacuum cleaners.

As operating frequencies and power density continue to increase, capacitor selection becomes more challenging. Key factors such as low ESR, high ripple current capability, low ESL, and strong vibration resistance are essential to ensure stable long-term operation.

Therefore, properly designed Robot Vacuum Capacitors are not only energy storage components but also key stability elements that determine the performance and lifetime of robot vacuum systems.

The post Robot Vacuum Capacitor for High-Speed BLDC Motor Drives: Complete Engineering Guide appeared first on Xuansn Capacitor.

Automotive Airbag Capacitor: Technical Requirements, Evaluation & Replacement Guide for ECU Systems

FilmCapacitor — Fri, 22 May 2026 09:19:47 +0000

An Automotive Airbag Capacitor is a safety-critical component used in airbag ECU systems to provide emergency backup energy during collision events. Its performance directly affects whether the airbag can deploy reliably when the vehicle battery is damaged or disconnected.

To evaluate or replace an automotive airbag capacitor (especially when replacing brands like NCC LBG/LBV series), engineers typically focus on five key dimensions:

Low-temperature performance (−40°C ESR stability)
High-temperature lifetime (105°C long-term endurance)
Low ESR for fast energy discharge
High reliability under vibration and cycling (>100,000 cycles)
Supply chain stability and cost competitiveness

Modern domestic solutions such as the Xuansn XHL Series Automotive Airbag Capacitor are designed to meet these requirements while improving supply chain security and reducing lead time pressure.

1. What Is an Automotive Airbag Capacitor?

An Automotive Airbag Capacitor is a high-reliability aluminum electrolytic capacitor used inside an airbag ECU (Electronic Control Unit). Its main function is to store energy and provide backup power when the vehicle experiences a crash and the main power supply is interrupted.

In such cases, the ECU must still:

Detect crash signals
Trigger deployment logic
Deliver stable energy to ignition circuits

Unlike general-purpose capacitors, automotive airbag capacitors are designed for safety-critical operation, meaning failure is not an option.

2. System Role in Airbag ECU

Inside an airbag ECU, the capacitor acts as an energy buffer module.

Its key roles include:

Maintaining voltage during crash-induced power loss
Ensuring ignition circuits receive sufficient energy
Supporting ECU self-diagnosis cycles
Stabilizing transient load fluctuations

Even a few milliseconds of voltage drop can affect deployment timing, making capacitor performance directly linked to passenger safety.

3. Why Automotive Airbag Capacitors Have Extreme Requirements

3.1 Low Temperature Performance (−40°C)

At −40°C, electrolyte conductivity decreases significantly. This causes ESR (Equivalent Series Resistance) to increase.

A higher ESR leads to:

Slower discharge speed
Larger voltage drop under load
Reduced energy efficiency
Potential ECU instability during cold start conditions

Therefore, maintaining low ESR at −40°C is one of the most critical requirements for an Automotive Airbag Capacitor.

3.2 High Temperature Endurance (105°C Operation)

In automotive environments, ECU modules often operate near engine compartments or sealed control areas where temperatures reach 105°C or higher.

At elevated temperatures:

Electrolyte evaporation accelerates
Capacitance gradually decreases
ESR increases over time
Lifetime shortens significantly

Thus, capacitor lifetime is not just a specification—it represents material stability and manufacturing quality.

3.3 ESR and Energy Discharge Speed

ESR directly affects how quickly stored energy can be released.

For airbag systems:

Lower ESR = faster discharge
Higher ESR = slower response and higher heat loss

In crash scenarios, fast and stable energy release is essential for reliable deployment timing.

3.4 Charge–Discharge Cycle Durability

Airbag ECUs perform continuous self-diagnostic tests during vehicle operation. This results in repeated charging and discharging cycles.

A qualified Automotive Airbag Capacitor must withstand:

More than 100,000 charge/discharge cycles
Stable electrical performance over time
Minimal degradation of electrode structure

3.5 Mechanical and Vibration Reliability

Automotive environments include:

Continuous vibration
Mechanical shock
Thermal expansion stress

These conditions can lead to internal fatigue failures if the capacitor structure is not robust enough.

4. Industry Benchmark: NCC LBV Series

NCC’s LBV series are widely used benchmarks in automotive airbag ECU applications.

They are known for:

Stable low ESR performance
High reliability under automotive conditions
Mature qualification history

However, they also face challenges:

Long lead times
High procurement cost
Supply chain dependency risks

This creates strong demand for qualified alternatives in the Automotive Airbag Capacitor market.

5. How to Evaluate an Automotive Airbag Capacitor Replacement

When selecting a replacement solution, engineers typically evaluate across five layers:

5.1 Electrical Parameter Matching

Key indicators include:

Capacitance tolerance
ESR at −40°C
Leakage current
Rated voltage margin

5.2 Reliability Verification

Must comply with automotive-grade validation:

AEC-Q200 qualification
High-temperature endurance testing (105°C)
Humidity testing (85°C / 85% RH)

5.3 Material and Process Design

Critical factors include:

Electrolyte conductivity and stability
Aluminum foil purity and density
Sealing technology reliability

5.4 Lifecycle Performance

10–15 years automotive lifetime requirement
Stable aging curve behavior
Predictable failure rate control

5.5 Supply Chain Considerations

Beyond technical performance:

Lead time stability
Cost competitiveness
Batch-to-batch consistency
Localization capability

6. Xuansn XHL Series: Automotive Airbag Capacitor Solution

The Xuansn XHL Series Automotive Airbag Capacitor is developed to address both electrical performance and supply chain challenges in airbag ECU applications.

6.1 Design Benchmarking

The XHL series is designed with reference to NCC LBV series, aiming for compatibility in:

Electrical performance
Mechanical dimensions
ECU integration requirements

6.2 Low-Temperature ESR Optimization

Through high-conductivity electrolyte formulation, the XHL series achieves:

Reduced ESR at −40°C
Improved cold-start discharge capability
Stable energy delivery in extreme environments

6.3 High-Density Foil Technology

The use of high-density anode foil provides:

Higher volumetric capacitance
Improved charge retention
Better miniaturization for compact ECU designs

6.4 Automotive Qualification

The related product platform complies with:

AEC-Q200 automotive reliability standard

This ensures suitability for safety-critical automotive applications such as airbag ECUs.

7. Xuansn XHL vs NCC LBV Series: Engineering Evaluation

Key comparison factors include:

Low-temperature ESR performance
Lifetime at 105°C
Ripple current endurance
Volume efficiency
Supply chain stability
Cost structure

From a system perspective, replacement decisions are not based on a single parameter but on balanced performance across electrical, mechanical, and supply chain dimensions.

8. Risk Considerations in Replacement Projects

Replacing an Automotive Airbag Capacitor involves system-level risk:

ECU redesign or validation delay
Certification re-approval requirements
Long-term reliability uncertainty
Functional safety validation complexity

Therefore, replacement must be validated through structured testing, not only datasheet comparison.

9. Validation Process for Automotive Airbag Capacitors

A typical qualification flow includes:

Sample electrical testing (ESR, capacitance, leakage)
Bench reliability testing
ECU-level integration testing
Vehicle-level validation
Mass production approval (SOP)

This ensures performance stability under real automotive conditions.

10. Market Trend: Localization of Automotive Airbag Capacitors

The automotive industry is accelerating toward:

Supply chain localization
Cost optimization
Reduced dependency on single suppliers
Faster delivery cycles

As a result, qualified domestic alternatives for Automotive Airbag Capacitor applications are increasingly evaluated in Tier 1 and OEM projects.

Conclusion

An Automotive Airbag Capacitor is not a standard passive component—it is a safety-critical energy storage device that directly affects airbag deployment reliability.

Successful selection or replacement requires a system-level evaluation covering:

Low-temperature ESR performance
High-temperature lifetime
Electrical and mechanical reliability
Automotive qualification standards
Supply chain stability

Solutions such as the Xuansn XHL Series aim to provide a balanced alternative to traditional benchmark products by combining electrical performance with improved supply security and cost efficiency.

The post Automotive Airbag Capacitor: Technical Requirements, Evaluation & Replacement Guide for ECU Systems appeared first on Xuansn Capacitor.

What Does uF Mean on a Capacitor? uF vs MFD, nF, pF, Capacitor Codes and Polarity Explained

FilmCapacitor — Wed, 13 May 2026 09:22:04 +0000

When choosing or replacing a capacitor, one of the most common questions is: what does uF mean on a capacitor?

The term uF (microfarad) represents a capacitor’s capacitance value — in other words, how much electrical energy the capacitor can temporarily store and release inside a circuit.

You’ll often see markings such as 1uF, 10uF, or 100uF printed directly on capacitors. Alongside uF, other units like nF, pF, and even the older marking MFD are also widely used in electronics.

Understanding these capacitor markings is essential for proper component selection, stable circuit performance, and reliable operation in power supplies, filtering systems, and signal-processing applications.

What Is uF on a Capacitor?

A microfarad (uF) is a standard unit used to measure capacitance.

Capacitance describes a capacitor’s ability to store electrical charge when voltage is applied.

Mathematically:

1μF = 1 × 10⁻⁶ F

This means one microfarad equals one-millionth of a farad.

In practical electronic circuits, uF values are considered relatively large and are commonly used in:

Power supply filtering
Energy buffering
Voltage stabilization
Audio circuits
Motor applications
DC-link and inverter systems

The larger the uF value, the more charge a capacitor can store.

Why the uF Value Matters

The capacitance rating directly affects how a circuit behaves. Selecting the wrong value may lead to unstable voltage, excessive ripple, or poor filtering performance.

A capacitor’s uF rating influences several key functions:

Voltage smoothing — helps reduce ripple in power supplies
Energy storage — supplies short bursts of current during load changes
Signal filtering — suppresses noise and improves signal quality
Timing control — determines delay and frequency characteristics in some circuits

Generally speaking, higher capacitance values provide stronger filtering and larger energy-storage capability.

uF vs nF vs pF Conversion

Capacitors use different capacitance units depending on the application and component size. The three most common units are:

[/fusion_text]

Value	Full Name	Value
10⁻⁶ F	microfarad	uF
10⁻⁹ F	nanofarad	nF
10⁻¹² F	picofarad	pF

The relationship between these units follows a factor of 1000.

uF, nF, and pF Conversion

This means:

1uF = 1000nF
1nF = 1000pF
1uF = 1,000,000pF

These conversions are commonly used when reading datasheets or replacing capacitors in electronic equipment.

Practical Capacitor Conversion Examples

Here are several common conversion examples engineers frequently encounter:

Capacitance	Equivalent Values
0.25uF	250nF = 250,000pF
0.01uF	10nF = 10,000pF
1nF	0.001uF
680pF	0.68nF

Using a quick conversion reference can help reduce mistakes during circuit design and maintenance.

What Does MFD Mean on a Capacitor?

If you work with older electronic equipment or HVAC systems, you may notice the marking MFD instead of uF.

MFD simply means microfarad.

In other words:

There is no difference in capacitance value between MFD and uF.

Why Older Capacitors Use MFD

Years ago, manufacturers often avoided using the Greek symbol “µ” because it was difficult to print on small components. Instead, they used abbreviations such as:

Today, uF has become the modern industry standard, while MFD mainly appears in:

Air-conditioning systems
Motor run capacitors
Vintage electronics
Industrial equipment

When replacing a capacitor, MFD and uF should always be treated as equivalent units.

How to Read Capacitor Values

Learning how to read capacitor markings is essential for choosing the correct component.

Depending on the capacitor type and size, values may appear as direct text or coded markings.

1. Direct Printed Markings

Large capacitors, especially electrolytic capacitors, usually display values directly.

Examples:

10uF 400V
100uF 25V
470uF 50V

In these markings:

uF = capacitance
V = maximum voltage rating

Always select a voltage rating equal to or higher than the actual operating voltage.

2. Understanding 3-Digit Capacitor Codes

Small ceramic capacitors often use a numeric code instead of full text.

Examples:

These codes are based on capacitance values in picofarads (pF).

3.How the 3-Digit Code Works

First two digits → significant numbers
Third digit → number of zeros added

Example calculations:

104 = 10 × 10³ pF = 100,000 pF = 100 nF

103 = 10 × 10² pF = 10,000 pF = 10 nF

This coding system saves space on miniature components.

Additional Capacitor Markings

Capacitors often include more than just capacitance values.

Other important specifications include:

Marking	Meaning
16V / 50V	Voltage rating
±5% / ±10%	Tolerance
X7R / C0G	Temperature characteristics
Polarized stripe	Negative terminal indicator

These parameters directly affect reliability, temperature stability, and circuit lifespan.

Common Mistakes When Reading Capacitors

Beginners frequently make errors when identifying capacitor values.

Typical issues include:

Confusing uF, nF, and pF units
Misreading 3-digit codes
Ignoring voltage ratings
Using polarized capacitors incorrectly
Assuming all capacitors are interchangeable

Correct identification helps avoid overheating, circuit instability, and component failure.

Do Capacitors Have Polarity?

Some capacitors are polarized, while others are not.

Polarized Capacitors

Electrolytic capacitors usually have positive and negative terminals and must be installed correctly.

Non-Polarized Capacitors

Ceramic and film capacitors can generally be connected in either direction.

Understanding capacitor polarity is especially important in DC circuits and power electronics applications.

Quick Capacitor Value Reference

Code / Value	Equivalent
104	100nF
103	10nF
1uF	1000nF
0.1uF	100nF

This quick-reference chart is useful for troubleshooting, repairs, and capacitor replacement.

FAQ

Is a higher uF capacitor better?

Not necessarily. A higher uF value provides more capacitance, but using the wrong value may affect timing, filtering, or startup performance in electronic circuits.

Can I replace a capacitor with a different uF value?

It depends on the circuit. Small differences may work in some applications, but incorrect capacitance can cause instability or equipment damage.

Is MFD the same as uF on a capacitor?

Yes. MFD and uF both represent microfarads and are interchangeable in capacitor labeling.

What does 104 mean on a capacitor?

104 is a capacitor code meaning 100,000pF, which equals 100nF or 0.1uF.

Conclusion

Understanding what uF means on a capacitor is fundamental for anyone working with electronic circuits.

The uF rating defines how much energy a capacitor can store and directly impacts filtering, voltage stability, and overall circuit performance.

By learning capacitor unit conversion, code systems, MFD markings, and polarity identification, you can confidently select the correct capacitor for both modern and legacy electronic applications.

For high-frequency filtering and EMI-sensitive designs, selecting the proper capacitor technology is equally important. High-performance feedthrough capacitors, film capacitors, and electrolytic capacitors each play different roles depending on the application requirements.

The post What Does uF Mean on a Capacitor? uF vs MFD, nF, pF, Capacitor Codes and Polarity Explained appeared first on Xuansn Capacitor.

DC-Link Film Capacitor for High Voltage Inverter Applications

FilmCapacitor — Mon, 11 May 2026 09:09:25 +0000

DC-Link Film Capacitor for High Voltage Inverter Applications

In recent years, the rapid growth of electric vehicles, photovoltaic systems, energy storage and charging infrastructure has significantly increased the demand for DC-Link film capacitor. In modern power electronic systems, the DC-Link capacitor is a critical component that absorbs high pulse current from the DC bus, smooths bus voltage, and suppresses transient voltage spikes during switching. This helps protect power devices such as SiC MOSFETs and IGBTs while improving system stability and efficiency.

As EV powertrain platforms continue to move from 400V to 800V architectures, higher requirements are placed on inverter capacitor performance. High voltage operation, faster switching speed and greater power density all make low ESR and high reliability DC-Link capacitors increasingly important.

Why DC-Link Film Capacitors Matter

In conventional silicon IGBT half-bridge inverters, aluminum electrolytic capacitors have often been used in the DC bus. However, their relatively high ESR can cause voltage overshoot during switching.

Compared with silicon IGBT solutions, SiC MOSFET devices operate at much higher switching frequencies. This produces larger voltage ripple and transient stress in the DC link stage. Traditional electrolytic capacitors typically have resonance frequencies around 4kHz, which often cannot effectively absorb high-frequency ripple current generated by SiC-based inverters.

For this reason, DC-Link film capacitors have become the preferred solution in:

electric vehicle drive inverters
photovoltaic inverters
energy storage inverters
industrial motor drives
high-voltage DC power conversion systems

Advantages of DC-Link Film Capacitors

Compared with aluminum electrolytic capacitors, film capacitors offer several important benefits:

lower ESR for reduced switching loss
higher voltage capability for 800V and high-voltage platforms
stronger ripple current resistance
non-polar structure for improved design flexibility
better thermal stability under harsh environments
longer operating lifetime and improved system reliability

Because of these advantages, DC-Link film capacitors help fully utilize the high-frequency and low-loss characteristics of SiC MOSFET technology while reducing passive component size and system weight.

Xuansn MKP Series DC-Link Film Capacitors

To meet the increasing demand from EV, solar and energy storage markets, Xuansn developed the MKP Series DC-Link film capacitors.

The MKP series is designed for both SiC MOSFET and silicon IGBT power systems. By combining advanced film technology, premium raw materials and optimized internal structure, the series provides excellent electrical performance in demanding inverter applications.

Key features

capacitance range: 1μF to 500μF
rated voltage: 500V to 1500V
low ESR design
low leakage current
high temperature stability
compact structure
high power density
optimized thermal dissipation design

Performance benefits

The low ESR design helps reduce switching voltage stress and energy loss, improving inverter efficiency.

Its high voltage capability enables stable operation in high-voltage DC bus environments.

Advanced thermal management and premium film materials ensure stable performance under elevated temperatures and extend service life.

Compact dimensions and high power density support higher system integration while reducing overall volume and weight.

Compared with conventional designs, Xuansn MKP Series DC-Link film capacitors provide 30% higher dv/dt capability and 30% longer service life, improving the reliability of SiC and IGBT circuits while delivering better overall cost performance.

Typical applications

EV traction inverters
onboard chargers
photovoltaic string inverters
energy storage PCS systems
industrial frequency converters
high power DC-DC converters

FAQ

What is a DC-Link film capacitor?
A DC-Link film capacitor is used in power electronic circuits to stabilize DC bus voltage, absorb ripple current and suppress switching transients.

Why use film capacitors instead of electrolytic capacitors in inverters?
Film capacitors offer lower ESR, higher voltage capability, longer life and better high-frequency performance, making them more suitable for SiC MOSFET and modern inverter applications.

Are DC-Link film capacitors suitable for 800V EV systems?
Yes. High-voltage DC-Link film capacitors are widely used in 800V EV platforms because they can withstand higher switching stress and provide better long-term reliability.

Conclusion

As EV, photovoltaic and energy storage systems continue to move toward higher voltage, higher switching frequency and higher power density, the performance requirements for DC-Link film capacitors continue to increase.

Compared with conventional aluminum electrolytic capacitors, DC-Link film capacitors offer lower ESR, higher voltage capability, better ripple current handling and longer service life. These advantages make them an ideal choice for modern SiC MOSFET and IGBT inverter applications.

With advanced materials, optimized structure and reliable thermal performance, Xuansn MDP Series DC-Link film capacitors help improve inverter efficiency, reduce system size and weight, and enhance long-term reliability. From EV traction inverters to photovoltaic and energy storage systems, Xuansn provides dependable inverter capacitor solutions for demanding power electronics applications.

The post DC-Link Film Capacitor for High Voltage Inverter Applications appeared first on Xuansn Capacitor.

April at Xuansn: Company Culture and Growth at a Capacitor Manufacturer

FilmCapacitor — Fri, 08 May 2026 01:25:41 +0000

April arrived like a gentle spring breeze, writing new vitality across the earth.

Looking back on these thirty days, the people of Xuansn enriched their minds through learning, honored time with craftsmanship, and shared warmth through care. Every step we took is worth remembering.

Warm Hearts, Strong Steps

The smiles of our employees are the most beautiful part of our company.

On April 15, Ms. Yan Qiong, a National Level II Psychological Counselor, joined Xuansn to share her session Positive Psychology, A Happier Life, bringing a warm and meaningful conversation to our team.

Through practical examples and sincere insights, she guided us to better understand emotions, relieve stress, and build a stronger sense of well-being. Her session reminded us how to care for ourselves amid busy schedules and remain optimistic when facing challenges.

At Xuansn, we believe that people who are treated with kindness can pass that warmth on—to their families, to our products, to our customers, and to the wider world.

Caring for Youth, Building the Future

Caring for young people means caring for the future of the company.

In April, representatives from the Zhangmutou Town Committee for the Care of the Next Generation and the Xiegang Town Committee visited Xuansn to review and guide our youth development initiatives.

Through on-site visits and open discussions, their encouragement recognized the work we have done and expressed high expectations for the future.

Young people are the roots of an enterprise. Only when the roots grow deep can the branches flourish.

This visit strengthened our commitment to supporting young talent with higher standards and stronger initiatives. We will continue moving forward with confidence and responsibility.

The Fragrance of Books, The Energy of Youth

The spirit of learning among young people is one of the strongest foundations of an enterprise.

Co-organized by Xuansn and the Xiegang Youth League Committee, our Youth Cadre Reading Exchange was held on a bright April afternoon.

Young participants gathered with books in hand, connecting through reading, exchanging ideas, and sharing reflections.

Reading is one of the best investments we can make in ourselves. Sharing is one of the most genuine gifts we can offer others.

These young people, with light in their eyes and ambition in their hearts, are the driving force behind Xuansn’s journey toward the future.

Family Education, Quiet Strength

Family is the smallest unit of society, and society is built upon families.

The Women’s Federation continues to care for the supportive families behind every Xuansn employee. This April, we invited Mr. Shi Changqing to deliver a special lecture titled Parent Roles and Home-School Cooperation.

How can parents be present without overstepping? How can families and schools work together with shared purpose?

Through thoughtful perspectives and real-life examples, Mr. Shi offered valuable guidance. His 90-minute session appeared to focus on parenting, but in many ways, it spoke to the lifelong responsibility of being a parent.

Nurturing future generations begins at home. Quiet love often shapes the strongest foundations.

Every child who grows up with the right kind of love becomes part of the nation’s future.

Honoring Dedication, Celebrating Craftsmanship

From emotional well-being to craftsmanship, from community support to youth development, from family education to building the future—Xuansn has continued to move forward with calm determination throughout this spring.

As May approaches, our original purpose remains unchanged. We will keep moving forward with confidence, grow with the times, and continue our journey toward wider horizons.

The post April at Xuansn: Company Culture and Growth at a Capacitor Manufacturer appeared first on Xuansn Capacitor.

Electric Forklift Capacitor for Motor Controller Reliability

FilmCapacitor — Thu, 30 Apr 2026 02:17:14 +0000

Introduction

Electric forklifts are rapidly replacing traditional internal combustion forklifts as industries move toward low-carbon, energy-efficient operations. In warehousing, logistics, and manufacturing environments, the demand for higher efficiency, lower emissions, and reduced operating costs continues to grow. In these applications, the electric forklift capacitor plays a critical role in maintaining stable power delivery, supporting motor controller performance, and improving long-term system reliability.

Under high-intensity and long-duration working conditions, electric forklifts face several challenges, including battery endurance, ripple current stress, vibration resistance, and thermal management. At the center of these challenges is the motor controller, which is responsible for efficiently converting battery energy into mechanical power while ensuring precise motor operation.

To meet these demanding requirements, selecting the right capacitor for electric forklift motor controller applications is essential.

Why Electric Forklifts Require High-Performance Capacitors

Electric forklift motor controllers operate in demanding industrial environments where electrical and mechanical stress are continuous.

Typical operating conditions include:

Frequent acceleration and braking cycles
High ripple current during power conversion
Continuous load fluctuations
Strong mechanical vibration and shock
Elevated internal operating temperatures

Under these conditions, an electric forklift capacitor must not only store and release energy efficiently but also maintain stable electrical performance over long operating periods.

A poorly selected capacitor may result in:

Excessive internal heat generation
Higher power loss
Reduced motor controller efficiency
Shortened service life
Unexpected system failure

For this reason, low ESR capacitors and high ripple current capacitors have become essential components in modern electric forklift motor control systems.

Key Challenges in Electric Forklift Motor Controller Design

High Ripple Current Stress

During motor acceleration, braking, and rapid load changes, motor controllers generate significant ripple current. If the capacitor cannot withstand these current levels, internal temperature rises rapidly, accelerating performance degradation and reducing operational life.

Thermal Management

Equivalent Series Resistance (ESR) directly affects heat generation inside the capacitor. High ESR causes additional energy loss and increases internal temperature, which can negatively affect both capacitor lifetime and controller reliability.

Vibration and Mechanical Stress

Electric forklifts frequently operate on uneven floors, ramps, and industrial surfaces. Continuous vibration and shock can weaken solder joints, loosen lead connections, and cause premature capacitor failure if mechanical strength is insufficient.

How an Electric Forklift Capacitor Improves Motor Controller Performance

Energy Buffering

During sudden acceleration or load variation, capacitors quickly store and release energy. This buffering effect helps maintain smooth motor response and reduces stress on the battery system.

Voltage Stabilization

Capacitors stabilize the DC bus voltage inside the motor controller, helping protect sensitive power semiconductors and control circuits from voltage fluctuation.

Ripple Current Filtering

A low ESR electric forklift capacitor effectively absorbs ripple current, reduces electrical noise, improves power conversion efficiency, and lowers heat generation.

XLB Series Capacitors for Electric Forklift Applications

To meet the demanding operating requirements of electric forklift motor controllers, Xuansn developed the XLB Series aluminum electrolytic capacitors, designed for high current, high reliability, and industrial vibration environments.

Ultra-High Ripple Current Capability

The XLB Series supports ripple current ratings above 30A, making it suitable for frequent start-stop operation, heavy-load conditions, and high-current motor control applications.

Low ESR for Improved Thermal Performance

Low ESR design reduces internal heating and power loss while improving overall motor controller efficiency and extending service life.

Reinforced 0.8 mm Lead Pins

Thicker lead pins improve current-carrying capability while providing enhanced vibration resistance and stronger mechanical stability under harsh operating conditions.

High Reliability Construction

The XLB Series is optimized for long-term operation in demanding industrial, automotive, and electric mobility applications.

Typical Applications of XLB Series Capacitors

XLB Series capacitors are widely used in:

Electric forklift motor controllers
AGV (Automated Guided Vehicle) systems
AMR (Autonomous Mobile Robot) platforms
Industrial motor drives
Electric tools
Low-speed electric vehicles
High-speed electric motorcycles
Garden power equipment
Motor control boards

How to Choose the Right Electric Forklift Capacitor

When selecting an electric forklift capacitor for motor controller applications, engineers should evaluate the following parameters:

Ripple Current Rating

Choose a capacitor whose ripple current capability meets or exceeds actual operating requirements.

ESR Value

Lower ESR reduces heat generation and improves energy efficiency.

Temperature Rating

Capacitors rated for 105°C or higher are generally preferred for industrial applications.

Mechanical Strength

Reinforced leads and vibration-resistant construction help ensure long-term reliability.

Service Life

Long-life capacitors reduce maintenance frequency, downtime, and total operating cost.

Conclusion

As electric forklifts continue to evolve toward higher efficiency, higher reliability, and lower environmental impact, the role of the electric forklift capacitor becomes increasingly important.

By providing high ripple current capability, low ESR performance, and strong vibration resistance, Xuansn XLB Series capacitors help improve motor controller stability, reduce thermal stress, and support long-term efficient operation.

For modern electric forklift systems, selecting the right capacitor is not simply a component decision—it is a critical part of achieving reliable and sustainable material handling performance.

The post Electric Forklift Capacitor for Motor Controller Reliability appeared first on Xuansn Capacitor.

Server Capacitors for 1U AI Power Supply: High Power Density Design for Data Center Applications

FilmCapacitor — Fri, 24 Apr 2026 01:07:20 +0000

As artificial intelligence (AI) workloads continue to grow rapidly, modern data centers are increasingly dependent on high-performance computing infrastructure such as GPU clusters and AI training servers. In this environment, server capacitors for power supply systems have become a critical factor in 1U server PSU design, where extreme space constraints and thermal challenges directly impact power density, efficiency, and reliability.

Server capacitors play a vital role in energy storage, DC-link voltage stabilization, and high ripple current absorption. Their electrical and thermal performance directly determines the stability and efficiency of AI server power systems operating under high-frequency and high-load conditions.

This article provides a comprehensive engineering analysis of server capacitors used in AI power supply applications, focusing on high power density design, 105°C thermal reliability, and high-frequency switching environments driven by GaN and SiC technologies.

1. Challenges of Server Capacitors in 1U AI Power Supply Design

1.1 Extreme Space Constraints in 1U Server Architecture

In modern AI servers, the 1U form factor (44.45mm height) imposes strict limitations on internal component layout. As a result, power supply designers must achieve maximum performance within minimal physical volume.

In this environment, server capacitors for power supply systems must deliver:

High capacitance density in extremely limited space
Stable DC bus support for GPU and CPU transient loads
Efficient layout integration without blocking airflow

The reduction of capacitor size often directly impacts thermal design, forcing engineers to carefully balance electrical performance and mechanical constraints.

1.2 High Temperature Operation in Data Center Environments

Inside compact server power modules, thermal density is extremely high due to:

Dense PCB layout
Limited airflow channels
Continuous high-load AI computing operations

As a result, capacitors used in server power supply systems frequently operate at or near 105°C ambient temperature.

At this temperature level, conventional electrolytic capacitors face:

Accelerated electrolyte evaporation
ESR increase over time
Reduced ripple current capability
Shortened operational lifetime

Therefore, high-temperature endurance is a critical requirement for any server capacitor used in AI infrastructure and cloud computing systems.

1.3 High-Frequency Ripple Current from GaN and SiC Power Devices

Modern server power supplies increasingly adopt GaN (Gallium Nitride) and SiC (Silicon Carbide) semiconductor technologies to achieve higher switching efficiency.

However, these technologies significantly increase switching frequency, which leads to:

Higher ripple current stress
Increased internal heating in capacitors
Greater demand on ESR stability
More severe thermal cycling conditions

Thus, high ripple current capacitors for server power supply applications are essential for maintaining system stability in AI workloads.

2. Technical Requirements of High Power Density Server Capacitors

To meet the demands of AI data centers, modern server capacitors must satisfy several key electrical and thermal requirements.

2.1 High Capacitance Density for Energy Buffering

AI workloads such as machine learning training and inference produce rapid load fluctuations. Capacitors must provide sufficient energy storage to:

Stabilize DC-link voltage
Support sudden load spikes
Prevent voltage droop in GPU power rails

This requires significantly improved capacitance density per unit volume, which is a core performance metric in modern capacitor design.

2.2 Ultra-Low ESR for Efficiency Optimization

Equivalent Series Resistance (ESR) directly affects power loss and thermal generation.

Low ESR enables:

Reduced energy loss in switching cycles
Lower heat generation inside capacitor body
Improved overall PSU efficiency

In high-frequency GaN-based systems, ESR becomes one of the most critical parameters for server PSU capacitor selection.

2.3 High Ripple Current Handling Capability

Ripple current is one of the main stress factors in server power systems.

High-performance capacitors for server power supply must:

Sustain continuous ripple current stress
Avoid excessive self-heating
Maintain stable electrical performance over time

This is essential for ensuring long-term reliability in data center environments.

3. Xuansn XTN Series: High Power Density Server Capacitors for AI Systems

The Xuansn XTN series aluminum electrolytic capacitors are designed specifically for next-generation AI server power systems, including high-density computing and GaN-based PSU architectures.

3.1 Ultra-High Power Density Design

In a compact 30 × 70 mm form factor, the XTN series achieves:

450V rated voltage
1400μF capacitance
High-performance snap-in structure

With a capacitance density of 23.29 μF/cm³, the XTN series significantly improves space utilization in PSU design.

System Benefits:
Up to 55% reduction in power supply volume
Improved airflow path design
More efficient PCB thermal layout

This makes it ideal for 1U AI server power supply systems where space is extremely limited.

3.2 High Ripple Current Capability (19A Class Performance)

The XTN series supports up to 19A ripple current, enabling:

Reduced need for parallel capacitor configurations
Lower localized thermal accumulation
Simplified power circuit design

This improves both electrical stability and system-level efficiency in high-load environments.

3.3 High Temperature Reliability at 105°C

Designed for continuous operation in harsh environments, the XTN series delivers:

3000 hours lifetime at 105°C
Controlled capacitance degradation (≤8%)
Stable ESR characteristics over time

This ensures long-term reliability in AI data centers and cloud computing infrastructure.

4. System-Level Impact: Server Capacitors in AI Data Center Power Systems

Modern AI infrastructure relies heavily on efficient power conversion systems. When integrated into GaN-based server power supplies, high-performance capacitors significantly improve system behavior.

4.1 Improved Power Efficiency

Lower ESR and optimized electrical behavior result in:

1%–2% improvement in PSU efficiency
Reduced power loss during high-load operation
4.2 Reduced Thermal Stress

Better capacitor thermal performance leads to:

~10°C reduction in system temperature
Increased thermal headroom for compact PSU design
4.3 Higher System Reliability (MTBF Improvement)

By reducing component count and simplifying DC-link design:

Lower failure probability
Improved long-term stability
Higher MTBF in AI server environments

5. Applications of Server Capacitors

High-performance server capacitors are widely used in:

AI training servers (GPU clusters)
Cloud computing infrastructure
Hyperscale data centers
Telecom base station power systems
High-efficiency industrial power supplies
1U / 2U server power supply units

These applications require extremely stable DC-link energy buffering and high ripple current endurance.

6. Conclusion: The Critical Role of Server Capacitors in AI Computing Infrastructure

In modern AI-driven computing systems, server capacitors are no longer simple passive components. They are fundamental building blocks that define the performance ceiling of power supply systems.

As data centers continue to evolve toward higher power density, smaller form factors, and greater efficiency, the demand for advanced capacitors for server power supply applications will continue to increase significantly.

Key challenges such as:

Miniaturization
Thermal reliability
High ripple current handling
High-frequency switching compatibility

require continuous innovation in capacitor materials, electrolyte systems, and structural design.

The Xuansn XTN series demonstrates how advanced aluminum electrolytic capacitor technology can successfully address these challenges, enabling next-generation AI server power systems with higher efficiency, smaller size, and improved reliability.

Ultimately, in the era of AI infrastructure, server capacitors are not just components—they are a core enabler of power density evolution in modern data centers.

[/fusion_text][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container]

The post Server Capacitors for 1U AI Power Supply: High Power Density Design for Data Center Applications appeared first on Xuansn Capacitor.

What are the main uses of capacitors?

xiang xaunsn — Mon, 13 Apr 2026 02:32:42 +0000

The uses of capacitors are fundamental to modern electronic circuits, making them one of the most widely used passive components across industries. The uses of capacitors include energy storage, filtering, coupling, and timing in electronic systems.

From consumer electronics to automotive systems, industrial machinery, LED lighting, and renewable energy, capacitors play a critical role in voltage stabilization, noise filtering, and reliable circuit performance.

If you’re wondering what capacitors are used for, this guide explains the most important uses of capacitors, including their core functions, real-world applications, and how to choose the right capacitor for your needs.

What Are the Uses of Capacitors in a Circuit?

The uses of capacitors in circuits go far beyond simple energy storage. A capacitor is designed to store and release electrical energy, but it also plays multiple roles in maintaining circuit stability and performance.

The most common capacitor uses include:

Temporary energy storage for backup power or pulse discharge
Voltage smoothing to eliminate fluctuations in DC power outputs
Noise filtering & ripple reduction to block electromagnetic interference (EMI)
Signal coupling & decoupling to isolate DC and transmit AC signals
Timing & frequency control when paired with resistors in RC circuits

Thanks to these versatile functions, capacitors are integrated into nearly every electronic device, from small portable gadgets to heavy-duty industrial equipment.

Key Uses of Capacitors (Quick Summary)

Energy storage
Voltage smoothing
Noise filtering
Signal coupling & decoupling
Timing control

Common Uses of Capacitors in Different Industries

The uses of capacitors extend into many industries, where they solve different electrical and electronic challenges.

1. Power Supply Filtering

This is the most widespread capacitor application, critical for clean, stable power delivery. Capacitors smooth erratic DC voltage, reduce ripple from rectifier circuits, and prevent voltage drops that can damage sensitive components.

Typical Use Cases: Switching Mode Power Supplies (SMPS), AC-DC adapters, solar inverters, battery chargers

Recommended Type: Aluminum electrolytic capacitors (high capacitance, cost-efficient)

2. Energy Storage & Pulse Power

Capacitors charge and discharge rapidly, making them ideal for short-term, high-power energy bursts that batteries cannot deliver quickly enough.

Typical Use Cases: Camera flash circuits, pulse power systems, microcontroller backup power, energy harvesting devices

Recommended Type: Supercapacitors (ultra-high capacitance) for heavy storage; standard film capacitors for low-power pulses

3. Signal Coupling & Decoupling

Capacitors act as a “gatekeeper” for signals: they block DC voltage while allowing AC signals (audio, radio, data) to pass through, and reduce noise in digital and analog circuits.

Typical Use Cases: Audio amplifiers, RF communication devices, digital circuit boards, sensor modules

Recommended Type: Ceramic capacitors (high-frequency performance, compact size)

4. Timing & Oscillation Circuits

When combined with resistors, capacitors form RC circuits that control time delays and signal frequency, forming the backbone of timing and oscillation systems.

Typical Use Cases: Timer circuits, clock oscillators, pulse generators, PWM controllers

Recommended Type: Ceramic or film capacitors (high stability)

5. Motor Starting & Running

Single-phase AC motors rely on capacitors to generate starting torque and maintain steady operation, preventing stalling and improving efficiency.

Typical Use Cases: Electric fans, air conditioners, refrigeration compressors, washing machines

Recommended Type: Motor start capacitors (high voltage) & motor run capacitors (continuous duty)

6. Automotive Electronics

Modern vehicles demand rugged, high-reliability capacitors to support safety and infotainment systems, with strict industry certification requirements.

Typical Use Cases: Engine Control Units (ECU), ADAS, infotainment systems, instrument clusters, BMS

Recommended Type: AEC-Q200 qualified capacitors (automotive-grade durability)

7. LED Lighting Drivers

Capacitors eliminate flicker, stabilize voltage, and reduce ripple in LED circuits, extending bulb lifespan and improving visual quality.

Typical Use Cases: LED drivers, street lighting, industrial panels, residential lighting

Recommended Type: Aluminum electrolytic or ceramic capacitors

8. Industrial Equipment

In heavy industrial settings, capacitors boost efficiency, stabilize power, and extend the life of machinery under harsh operating conditions.

Typical Use Cases: Welding machines, variable frequency drives (VFDs), automation systems, high-voltage gear

Recommended Type: Film capacitors (long lifespan, high stability)

Capacitor Types & Matching Applications

Not all capacitors are built the same—selecting the right type ensures optimal performance and longevity. Here’s a quick breakdown:

Aluminum Electrolytic Capacitors: High capacitance, budget-friendly; perfect for power filtering and bulk energy storage
Ceramic Capacitors: Compact, excellent high-frequency response; ideal for decoupling and digital circuits
Film Capacitors: Ultra-stable, low ESR, long life; suited for industrial and high-voltage applications
Supercapacitors: Ultra-high capacitance, fast charge/discharge; used for backup power and pulse energy

How to Choose the Right Capacitor: Selection Guide

Picking the wrong capacitor can lead to circuit failure, reduced efficiency, or premature burnout. Evaluate these critical factors before making a selection:

Voltage Rating: Always select a capacitor with a voltage rating higher than the circuit’s operating voltage (20-50% margin recommended)
Capacitance Value: Match the value to your circuit’s energy storage, filtering, or timing needs
Temperature Range: Choose a capacitor rated for the operating environment (critical for automotive/industrial use)
ESR (Equivalent Series Resistance): Lower ESR improves efficiency and reduces heat buildup
Lifespan & Reliability: Prioritize durable types for high-stress applications
Package Size: Ensure compatibility with your PCB or equipment layout

Conclusion

Capacitors are the unsung heroes of modern electronics, and the uses of capacitors play a critical role in everything from consumer electronics to industrial automation. These capacitor uses—including energy storage, filtering, voltage stabilization, and timing control—make them essential components in modern circuit design.

By understanding the full range of uses of capacitors, engineers and designers can optimize performance, improve reliability, and extend the lifespan of electronic systems.

For high-quality, industry-grade aluminum electrolytic capacitors and personalized technical support, reach out to our team for competitive pricing and tailored solutions.

FAQ

Q1: What are capacitors mainly used for?

Capacitors are primarily used for energy storage, voltage smoothing, noise filtering, signal coupling/decoupling, and timing control in electronic circuits.

Q2: Where are capacitors used in everyday life?

Capacitors are found in nearly all household and portable devices: smartphones, laptops, TVs, refrigerators, air conditioners, LED lights, power banks, and car electronics.

Q3: Which capacitor is best for power supply filtering?

Aluminum electrolytic capacitors are the top choice for power supply filtering, thanks to their high capacitance, cost efficiency, and reliable performance.

Q4: What’s the difference between a start and run capacitor?

Start capacitors provide a short burst of power to kickstart motor rotation, while run capacitors maintain steady motor operation and efficiency during continuous use.

The post What are the main uses of capacitors? appeared first on Xuansn Capacitor.

Electrolytic Capacitors: Complete Guide to Types, Working Principle, Structure and Applications

FilmCapacitor — Fri, 10 Apr 2026 08:29:22 +0000

Electrolytic Capacitors – Comprehensive Technical Introduction

Electrolytic capacitors are widely used in modern electronic circuits due to their extremely high capacitance, compact structure, and cost efficiency. Compared with film and ceramic capacitors, electrolytic capacitors can achieve much larger capacitance values in a relatively small volume, which makes them indispensable in power electronics, industrial systems, communication equipment, and automotive electronics.

At the same time, electrolytic capacitors are also one of the most widely used but most failure-prone components in electronic circuits. Because of this dual nature—high performance but relatively lower reliability—they have become an “eternal research topic” in the field of electronic components.

According to electrode materials and structure characteristics, electrolytic capacitors mainly include aluminum electrolytic capacitors, tantalum electrolytic capacitors, niobium electrolytic capacitors, and polymer electrolytic capacitors. Each type has different performance characteristics and application scenarios.

1. What Are Electrolytic Capacitors?

Electrolytic capacitors are called “electrolytic” because one of their electrode systems is not a traditional metallic conductor but an electrolyte or a metal oxide layer. This structure fundamentally changes the way charge is conducted inside the capacitor.

In electrolytic capacitors, the conductive carriers are no longer electrons moving in a metal, but ions moving inside the electrolyte. This is the key distinguishing feature between electrolytic capacitors and other capacitor types such as ceramic or film capacitors.

Because of this ion-based conduction mechanism and extremely thin dielectric layer, electrolytic capacitors are able to achieve very high capacitance values, making them ideal for energy storage and power filtering applications.

2. Types of Electrolytic Capacitors

Electrolytic capacitors can be classified according to their anode materials and dielectric systems. The main types include:

Aluminum electrolytic capacitors
Tantalum electrolytic capacitors
Niobium electrolytic capacitors
Polymer electrolytic capacitors

Among them, aluminum electrolytic capacitors are the most widely used due to their low cost and large capacitance range. Tantalum and niobium capacitors are used in more demanding applications requiring higher stability and lower ESR. Polymer electrolytic capacitors represent the modern development direction with significantly improved electrical performance.

Each type plays a different role in electronic systems, depending on requirements such as ripple current capability, ESR performance, temperature stability, and size constraints.

3. Why Electrolytic Capacitors Are Widely Used

Electrolytic capacitors are the most widely used capacitors in electronic circuits because they provide an unmatched combination of high capacitance, low cost, and compact size.
They play a central role in the uses of capacitors, especially in power-related applications where large energy storage and voltage stabilization are required.

In almost every power-related electronic system, electrolytic capacitors are used for functions such as power smoothing, voltage stabilization, energy buffering, and noise filtering. These functions represent some of the most important practical uses of capacitors in modern electronics.

Without electrolytic capacitors, it would be extremely difficult to design compact and efficient power supply systems.

4. Evolution of Aluminum Electrolytic Capacitors

With the development of electronic technology, aluminum electrolytic capacitors have undergone significant evolution.

In early stages, aluminum electrolytic capacitors had large physical volume and relatively limited performance. The maximum operating temperature was often around 55°C, and they were mainly used for simple power frequency rectification and filtering applications.

Today, modern aluminum electrolytic capacitors have achieved major improvements, including:

Miniaturization of physical size
Reduced equivalent series resistance (ESR)
High ripple current capability
High temperature resistance up to 150°C
Capacitance reaching farad-level values
Surface-mount (SMD) structures

As a result, aluminum electrolytic capacitors are no longer limited to low-frequency rectification. They are now widely used in power electronics, high-frequency filtering, bypass circuits, and various advanced industrial applications.

5. Role of Tantalum and Polymer Electrolytic Capacitors

In applications where aluminum electrolytic capacitors cannot fully meet performance requirements, tantalum electrolytic capacitors play an important complementary role.

Tantalum capacitors are known for:

Excellent high-frequency performance
Low ESR characteristics
Strong ripple current capability
Long-term stability and reliability

Over time, tantalum capacitors have evolved from simple structures into advanced multi-anode and ultra-low ESR designs, making them suitable for high-performance electronic systems.

Polymer tantalum capacitors further reduce ESR to the lowest levels among all electrolytic capacitor types. Their solid polymer cathode structure also improves mechanical stability and makes them highly suitable for surface-mount technology.

Similarly, polymer aluminum electrolytic capacitors can reduce ESR by 1 to 2 orders of magnitude compared to traditional liquid-electrolyte capacitors, significantly improving ripple current handling and extending service life.

6. Why Large Capacitance Is Required in Circuits

One of the most important applications of capacitors is to smooth pulsating DC voltage into stable DC output during rectification.

For example, in industrial power conversion systems, AC voltage is first rectified into pulsating DC. This pulsating waveform must be smoothed using capacitors to provide stable DC power for electronic circuits.

Taking a single-phase bridge rectifier as an example:

Each rectifier diode conducts only for a few milliseconds (typically around 3 ms)
During the remaining time, the capacitor supplies energy to the load
This causes the capacitor voltage to fluctuate significantly during each cycle

As a result, large capacitance is required to reduce voltage ripple and maintain stable output. In many cases, the required capacitance value is too large for film or ceramic capacitors to achieve economically.

7. Why Electrolytic Capacitors Were Developed

The development of electrolytic capacitors was driven by the need for large capacitance, small volume, and low cost.

One key approach is increasing electrode surface area. This is achieved by:

Roughening the surface of aluminum foil
Chemical etching to create porous structures
Increasing effective surface area by hundreds of times

However, this introduces a critical challenge: the dielectric layer must be extremely thin and uniform while conforming perfectly to a highly rough surface.

Conventional film and ceramic capacitors cannot meet these requirements. This is why electrolytic capacitors were developed as a practical solution to this engineering problem.

8. Formation of Dielectric Film in Electrolytic Capacitors

The dielectric layer in electrolytic capacitors is formed through an electrochemical process called anodization.

In aluminum electrolytic capacitors, aluminum is oxidized to form a dense aluminum oxide (Al₂O₃) layer. This oxide layer acts as the dielectric material.

Key characteristics include:

Dielectric thickness is precisely controlled by voltage
Approximately 1.2–1.5 nm of oxide is formed per volt
High dielectric strength (~80 V/μm)
Stable insulation properties

Other valve metals such as tantalum, niobium, and titanium can also form stable oxide dielectric layers, which are widely used in different types of electrolytic capacitors.

9. Electrode Structure and Surface Area of Electrolytic Capacitors

To achieve extremely high capacitance, electrolytic capacitors rely heavily on electrode surface engineering.

The anode foil (especially aluminum foil) is chemically etched to create a highly rough and porous structure. This increases the effective surface area by hundreds of times compared to its geometric surface.

On the cathode side, a conductive electrolyte or polymer is used to ensure close contact with the rough anode surface. This combination allows the capacitor to achieve extremely high capacitance density within a very small volume.

10. Negative Electrode Mechanism of electrolytic capacitors

Unlike conventional capacitors that use solid metal electrodes, electrolytic capacitors use a non-solid cathode system, typically in the form of liquid electrolyte or conductive polymer.

This allows extremely close contact between electrodes and significantly increases effective surface area.

However, this also introduces limitations:

Lower conductivity compared to metals
Higher equivalent series resistance (ESR)
Lower temperature stability
Reduced high-frequency performance

These trade-offs are inherent to electrolytic capacitor design.

11. Structure of Aluminum Electrolytic Capacitors

A typical aluminum electrolytic capacitor consists of:

Etched anode aluminum foil
Aluminum oxide dielectric layer
Separator paper
Cathode aluminum foil
Liquid electrolyte
Wound cylindrical structure

These components are tightly wound into a core and sealed inside an aluminum casing to prevent electrolyte leakage and evaporation.

This wound structure allows maximum utilization of surface area while maintaining a compact form factor.

12. Manufacturing Process of Aluminum Electrolytic Capacitors

The manufacturing process of electrolytic capacitors includes several critical steps:

Corrosion (etching): increases aluminum foil surface area
Anodization: forms aluminum oxide dielectric layer
Cutting: prepares foil to required dimensions
Winding: assembles anode, cathode, and separator
Electrolyte saturation: vacuum impregnation of electrolyte
Sealing: prevents leakage and evaporation
Aging (formation): applies voltage to repair dielectric defects

The aging process is especially important because it helps stabilize leakage current and repair microscopic defects formed during manufacturing.

13. Key Electrical Parameters

Electrolytic capacitors are defined by several important electrical parameters:

1.Voltage Ratings

Includes rated DC voltage, surge voltage, reverse voltage (not allowed in normal use), and transient overvoltage conditions.

2.Capacitance

Measured at 100/120 Hz under standard conditions. Typical tolerance is ±20%.

3.Leakage Current

Caused by dielectric imperfections. It decreases over time due to self-healing effects and aging.

4.Dissipation Factor (DF / tanδ)

Represents energy loss and is frequency dependent. Closely related to ESR behavior.

5.ESR (Equivalent Series Resistance)

Mainly caused by electrolyte resistance. It significantly affects efficiency, heating, and high-frequency performance.

6.Ripple Current

AC ripple current causes internal heating. It is one of the main factors determining capacitor lifetime.

14. Operating Temperature and Lifetime

The operating temperature range of electrolytic capacitors is mainly determined by the electrolyte properties.

At high temperatures, electrolyte evaporation accelerates, reducing capacitance and increasing ESR. At low temperatures, the electrolyte becomes viscous, reducing performance.

Typical temperature ratings include:

85°C for general applications
105°C for industrial applications
125°C to 150°C for high-temperature environments

Lifetime is directly related to temperature and typically ranges from 1000 hours to over 10000 hours depending on design.

15. Equivalent Series Resistance (ESR)

ESR is one of the most critical parameters of electrolytic capacitors.

It mainly comes from electrolyte resistance and internal structural losses. Compared with ceramic and film capacitors, electrolytic capacitors generally have much higher ESR values.

For example:

Small capacitors may have ESR around tens of ohms
Larger capacitors reduce ESR but still remain relatively high

High ESR leads to:

Heat generation
Reduced ripple current capability
Lower high-frequency performance

This is why low-ESR and polymer electrolytic capacitors have become an important development direction.

16. Ripple Current Capability

Ripple current capability is one of the most important performance parameters of electrolytic capacitors, especially in power electronics and switching power supply applications.

When alternating ripple current flows through the capacitor, internal resistance (ESR) causes power loss in the form of heat. This self-heating effect directly influences the internal temperature of the capacitor and has a major impact on its lifetime and reliability.

If the ripple current exceeds the rated specification, the internal temperature will rise rapidly, accelerating electrolyte degradation, increasing ESR over time, and significantly shortening the operational lifetime of the capacitor.

Therefore, ripple current rating is a critical design parameter in power supply systems, inverter circuits, motor drives, and renewable energy applications where continuous high-current operation is required.

17. Conclusion

Electrolytic capacitors are fundamental components in modern electronics due to their unmatched capacitance density and cost advantage.

Although they have inherent limitations such as ESR, leakage current, and finite lifetime, continuous technological improvements—especially in polymer electrolytes and advanced electrode design—are significantly improving their performance.

Today, electrolytic capacitors remain the backbone of power electronics, energy storage systems, and industrial power conversion applications, and they continue to evolve with modern electronic technology.

The post Electrolytic Capacitors: Complete Guide to Types, Working Principle, Structure and Applications appeared first on Xuansn Capacitor.
