AC Capacitor vs DC Capacitor: Key Differences, Working Principles and Applications

In electronic circuits, capacitors are indispensable fundamental components. However, they are not universal components. AC capacitors (alternating current capacitors) and DC capacitors (direct current capacitors) both store electrical charge and block direct current while allowing alternating signals to pass, but due to differences in structure and electrical characteristics, they cannot be used interchangeably in circuits.

This article provides a comprehensive explanation—from outline to detailed analysis—to help you clearly understand the difference between AC capacitors and DC capacitors, their working principles, and their application scenarios, so you can avoid common mistakes when selecting or using capacitors.

1. Article Outline

  1. Introduction – The basic role of capacitors and the importance of understanding the difference between AC capacitors and DC capacitors when selecting components.

  2. Core Definitions – Clarifying the fundamental positioning of AC capacitors and DC capacitors.

  3. Working Principle Comparison – Explaining how the two capacitors behave differently in circuits.

  4. Key Differences (Focus) – A detailed comparison from four important aspects: polarity, voltage rating, structure, and electrical characteristics.

  5. Typical Application Scenarios – Understanding the differences through real-world electronic applications.

  6. Selection Mistakes and Precautions – Practical guidelines to avoid common mistakes.

  7. Conclusion – A concise summary to quickly distinguish AC capacitors from DC capacitors.

2. Detailed Explanation: Understanding the Difference Between AC Capacitors and DC Capacitors

Introduction: Stop Mixing Capacitors – Understand the Difference First

The primary function of a capacitor is to store electrical charge and block direct current while allowing alternating current to pass. Capacitors are widely used in devices ranging from mobile phone chargers and LED lights to air conditioners and industrial equipment.

However, many people ignore the difference between AC capacitors and DC capacitors when selecting components. Using a DC capacitor instead of an AC capacitor—or vice versa—can cause capacitor swelling, component failure, or even circuit damage and safety hazards.

In essence, the difference between AC capacitors and DC capacitors lies in their adaptation to different electrical environments. This article will clearly explain these differences to help you select and use capacitors correctly.

(1) Core Definitions: Understanding the Fundamental Difference

Both AC capacitors and DC capacitors consist of two electrodes separated by a dielectric material, but they are designed for different voltage environments.

DC Capacitors

A DC capacitor is designed specifically for direct current circuits. It is mainly used in DC power supplies and pulsating DC circuits, where its primary functions include:

  • Filtering

  • Energy storage

  • Timing and delay functions

DC capacitors cannot operate under continuous AC voltage conditions.

AC Capacitors

An AC capacitor is designed for alternating current circuits and can operate continuously under AC voltage conditions, such as 220V mains power.

Their main functions include:

  • Allowing AC signals to pass

  • Blocking DC components

  • Voltage dropping

  • Motor starting and filtering

Simply put:

  • DC capacitors serve DC circuits

  • AC capacitors serve AC circuits

This difference in application environment is the foundation of their functional differences.

(2) Working Principle Comparison

Although both types of capacitors rely on the fundamental principle of charge storage, their charge movement behavior differs due to the nature of the voltage applied.

Working Principle of DC Capacitors

In a DC circuit, the voltage remains constant.

When a DC capacitor is connected to the circuit, two stages occur:

Charging Stage

At the moment the capacitor is connected, it rapidly absorbs electrical charge, allowing a transient current to flow.

Steady State Stage

When the voltage across the capacitor equals the supply voltage, charging stops and almost no current flows through the circuit. At this point, the capacitor behaves like an open circuit.

Therefore, DC capacitors are commonly used to:

  • Smooth pulsating DC signals

  • Stabilize power supply voltage

  • Store energy temporarily

Working Principle of AC Capacitors

In an AC circuit, voltage continuously changes magnitude and polarity.

When an AC capacitor is connected:

  • As voltage increases, the capacitor charges

  • As voltage decreases, the capacitor discharges

  • When polarity reverses, the capacitor charges and discharges in the opposite direction

Therefore, AC capacitors remain in a continuous charge-discharge cycle.

This allows alternating current to pass through the capacitor, while direct current remains blocked.

(3) Key Differences Between AC Capacitors and DC Capacitors

Many people confuse AC and DC capacitors because they overlook their core differences. The following four aspects clearly distinguish them.

1. Polarity Difference

DC Capacitors

Most DC capacitors (such as aluminum electrolytic capacitors and tantalum capacitors) are polarized, meaning they have clearly marked positive and negative terminals. Incorrect connection may cause swelling, leakage, or explosion.

The difference between AC capacitors and DC capacitors

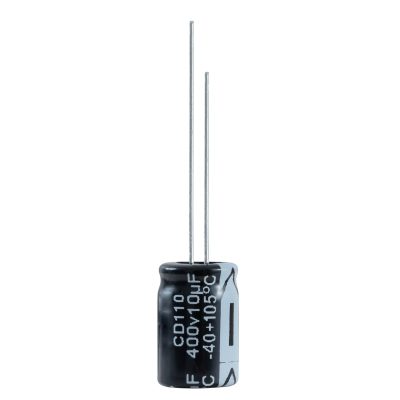

10uf 400v Electrolytic Capacitor

AC Capacitors

AC capacitors are generally non-polarized, meaning they have no positive or negative terminals and can be connected in either direction.

Examples include:

  • CBB capacitors

  • Metallized film capacitors

  • Safety capacitors

The difference between AC capacitors and DC capacitors

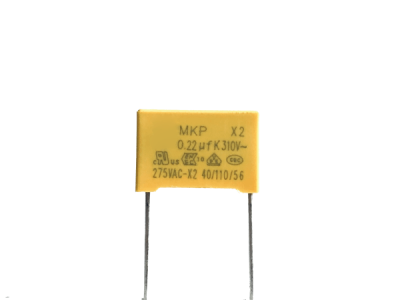

0.22UF X2 Safety Capacitor

2. Voltage Rating Difference

DC Capacitors

The voltage rating indicates the maximum DC voltage the capacitor can withstand. They are designed only for DC or pulsating DC circuits.

Applying AC voltage to a DC capacitor may cause rapid failure.

AC Capacitors

The voltage rating represents the maximum AC voltage the capacitor can safely handle, such as AC 250V or AC 450V.

These capacitors can withstand continuous polarity reversal.

3. Structural Difference

DC Capacitors

Common types include electrolytic capacitors, which use electrolytes as dielectric materials. They typically have:

  • Large capacitance

  • Small size

  • Low cost

However, their temperature resistance and stability are relatively limited.

AC Capacitors

AC capacitors often use film or ceramic dielectric materials, such as:

  • Polypropylene

  • Polyester

These materials provide:

  • Higher stability

  • Better insulation

  • Longer service life

4. Electrical Characteristics

DC Capacitors

  • Large capacitance values

  • Suitable for energy storage and filtering

  • Common in low-voltage DC circuits

AC Capacitors

  • Lower capacitance values

  • Capable of handling high-frequency AC signals

  • Suitable for high-voltage AC environments

(4) Typical Application Scenarios

Understanding where each capacitor is used helps clarify their differences.

Common Applications of DC Capacitors

DC capacitors are mainly used in DC circuits.

Typical examples include:

  • Mobile phone chargers and power banks – smoothing DC output voltage

  • LED drivers – stabilizing DC power supply

  • Household appliance timing circuits – implementing delay functions

  • Automotive electronics – stabilizing vehicle electrical systems

Common DC capacitor types:

Common Applications of AC Capacitors

AC capacitors are widely used in alternating current systems.

Examples include:

  • Air conditioners, fans, and pumps – motor starting capacitors

  • LED ceiling lights – capacitive voltage dropping circuits

  • Audio crossover networks – separating high and low frequencies

  • Industrial equipment – EMI filtering and safety protection

Common AC capacitor types:

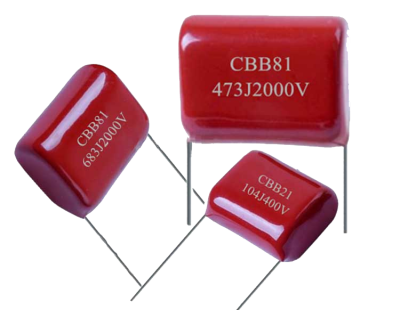

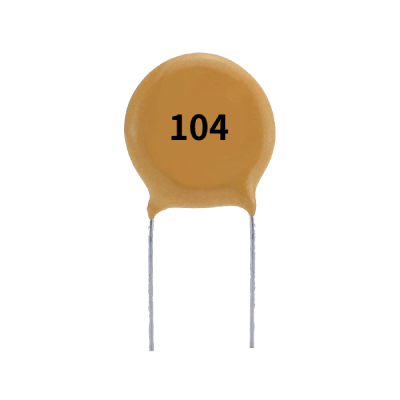

104 Ceramic capacitor

(5) Selection Mistakes and Precautions

Many capacitor failures occur because the difference between AC and DC capacitors is misunderstood.

Mistake 1: Replacing AC capacitors with DC capacitors

This is not recommended. DC capacitors cannot withstand alternating voltage and may fail quickly.

Mistake 2: Replacing DC capacitors with AC capacitors

Although technically possible, AC capacitors usually have smaller capacitance values and may not meet DC circuit requirements.

Selection Tips

When selecting capacitors, always consider:

  • AC or DC circuit type

  • Voltage rating

  • Capacitance value

The capacitor voltage rating must exceed the maximum circuit voltage.

Capacitor Selection Reference Table

Capacitor Type AC/DC Type Voltage Range Capacitance Range Typical Applications
Aluminum Electrolytic Capacitor DC 6.3V – 450V 1µF – 10000µF Power supply filtering
Tantalum Capacitor DC 2.5V – 50V 0.1µF – 100µF Compact electronics
Solid Capacitor DC 6.3V – 250V 10µF – 1000µF Computer motherboards
CBB Capacitor DC 100V – 450V 0.01µF – 100µF Motor circuits
Metallized Film Capacitor DC 250V – 630V 0.1µF – 10µF Audio crossover
Safety Capacitor DC 250V – 400V  1000pF – 1µF EMI filtering

Conclusion

In summary:

  • DC capacitors are polarized and designed for DC circuits, where they provide filtering, energy storage, and timing functions.

  • AC capacitors are non-polarized and designed for alternating current circuits, where they allow AC signals to pass and support applications such as voltage dropping and motor starting.

Understanding these differences helps ensure proper capacitor selection and stable circuit performance.
